Bobcat Concrete Pump Attachment

Starting At

0% For 48 Months*

$567/MO

Available For Order

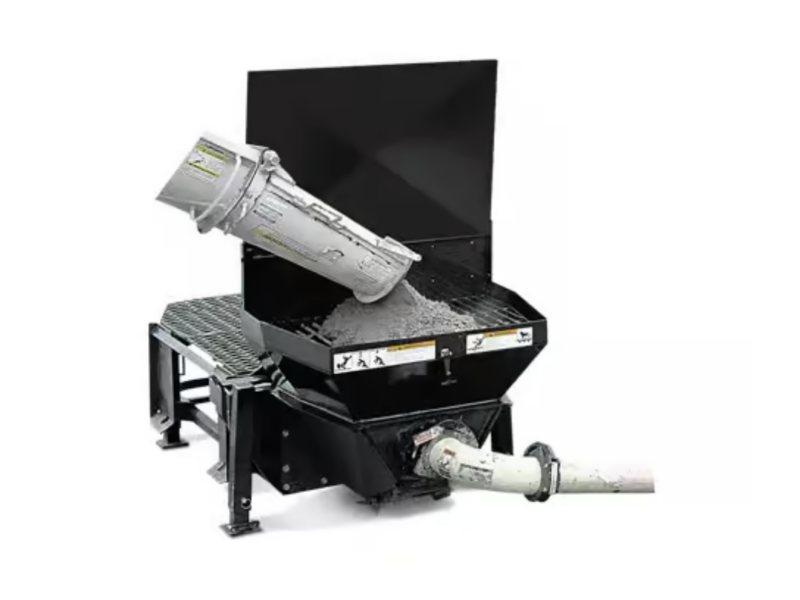

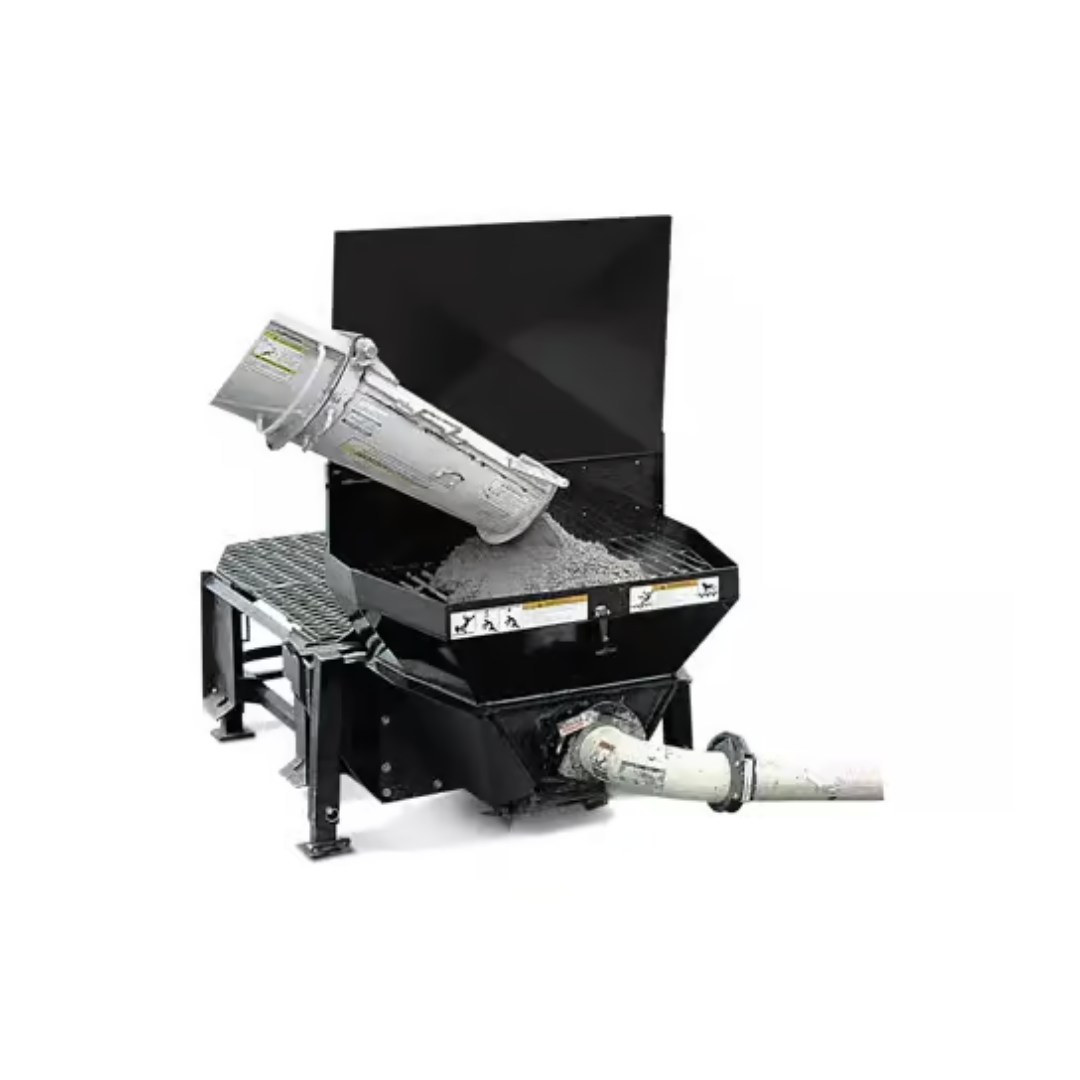

Bobcat Concrete Pump Attachment

This attachment simplifies concrete placement in hard-to-reach locations, improving efficiency on challenging jobsites. It can pump concrete up to 250 feet horizontally and as high as two stories vertically for precise placement. With a standard hydraulic-flow loader, it places up to 18 cubic yards of concrete per hour, while high-flow loaders increase output to as much as 28 cubic yards per hour for maximum productivity.

Bobcat Concrete Pump Attachment

Compatible With

No compatiblity data yet

Specifications

SpecificationValue
Operating Weight2,200 lbs
Overall Length102.9 in
Overall Width47.9 in
Overall Height54.9 in
Concrete Cylinder Diameter6 in
Concrete Cylinder Stroke24 in
Pumping Cylinder Diameter3 in
Maximum Concrete Pressure750 psi
Maximum Aggregate Size1.5 in
Swing Tube Diameter5 in
Swing Valve Cylinder Diameter3 in
Swing Valve Cylinder Stroke6 in
Hopper Capacity10 cu ft
Vertical Pumping Height50 ft
Horizontal Pumping Distance250 ft

Request a Quote

Submit your quote request, and our team will reach out shortly with details and pricing.
