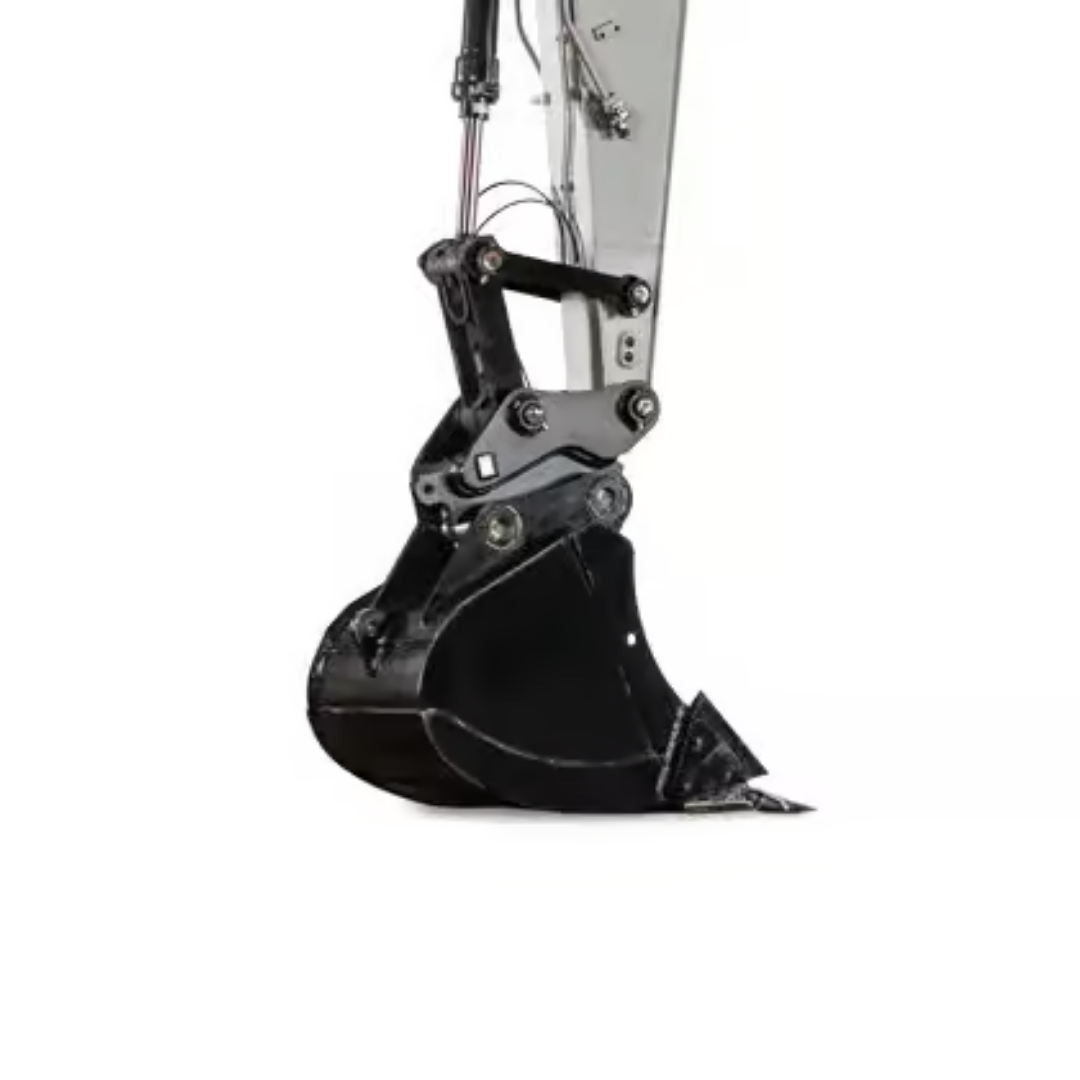

Bobcat Heavy Duty Trenching Bucket Attachment

Starting At

0% For 48 Months*

$567/MO

Available For Order

Bobcat Heavy Duty Trenching Bucket Attachment

Make light work of the heaviest digging by equipping your E145 large excavator with heavy-duty trenching buckets. Available in 24-inch, 36-inch, and 42-inch widths, these buckets are designed to upgrade your excavator’s capabilities and deliver reliable performance on demanding trenching applications.

Bobcat Heavy Duty Trenching Bucket Attachment

Compatible With

Backhoe Loaders-B760

Large Excavators- E145, E165, E220, E245





Specifications

Specification24″ (.42 CY)36″ (.71 CY)36″ (.80 CY)42″ (.85 CY)42″ (.96 CY)48″ (1.13 CY)
Bucket Width24 in36 in36 in42 in42 in48 in
Overall Length52.4 in56.9 in63.7 in56.9 in63.7 in63.7 in
Overall Width23.6 in35.4 in35.4 in41.3 in41.3 in47.2 in
Overall Height40.4 in40.4 in47.8 in40.4 in47.8 in47.8 in
Operating Weight826 lbs1,158 lbs1,694 lbs2,307 lbs2,437 lbs2,775 lbs
ISO Heaped Capacity0.42 cu yd0.71 cu yd0.80 cu yd0.85 cu yd0.96 cu yd1.13 cu yd
ISO Struck Capacity0.40 cu yd0.60 cu yd0.60 cu yd0.70 cu yd0.90 cu yd—

Rear Buckets Specifications

SpecificationRear Bucket 24″Rear Bucket 32″
Bucket Width24 in32 in
Overall Length27.7 in27.7 in
Overall Height30 in30 in
Operating Weight462 lbs572 lbs
ISO Heaped Capacity6.4 cu ft9.2 cu ft
ISO Struck Capacity0.2 cu yd0.3 cu yd
