Bobcat Trencher Attachment

Starting At

0% For 48 Months*

$567/MO

Available For Order

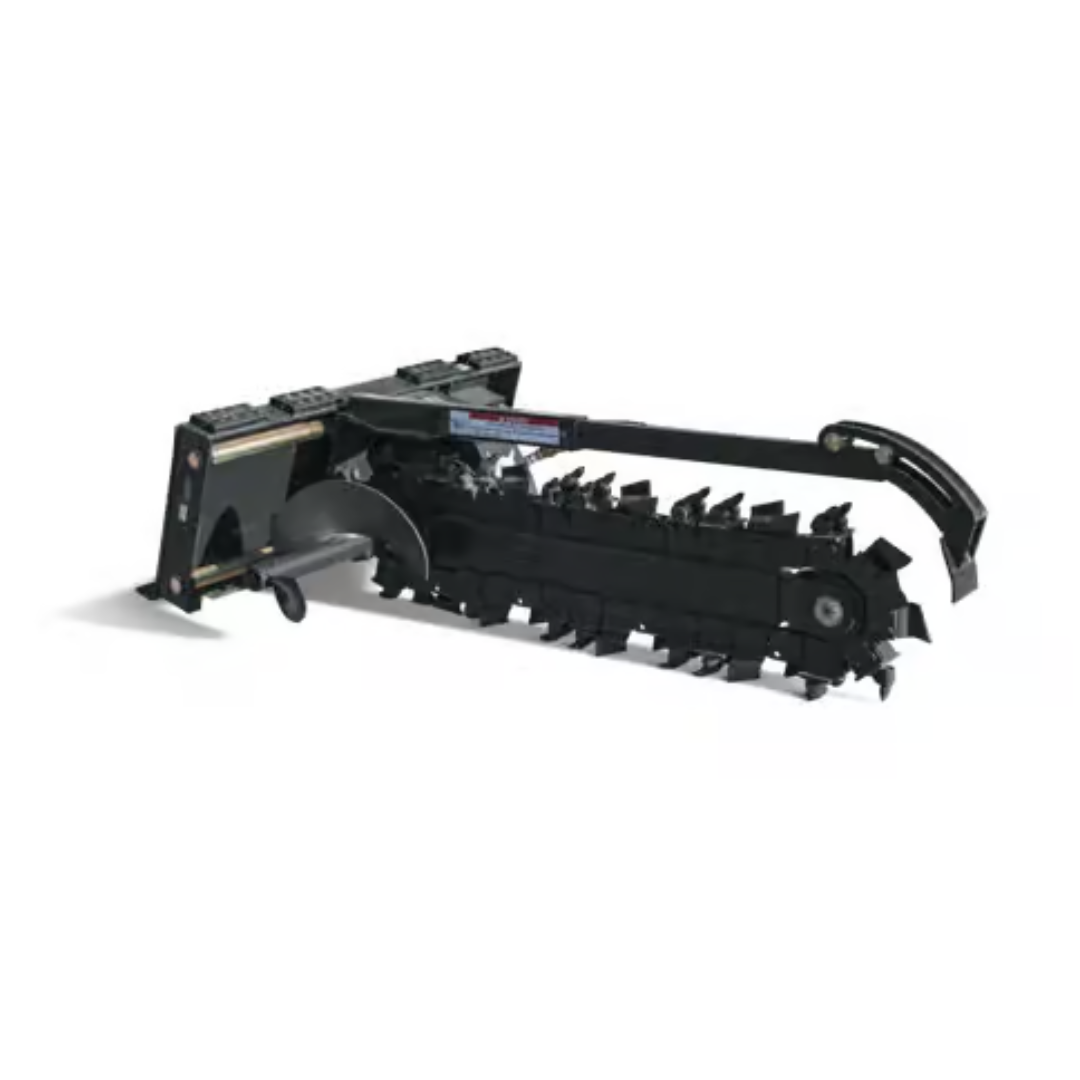

Bobcat Trencher Attachment

Cut into the ground and create clean, consistent trenches across all soil conditions with this powerful trencher attachment. Engineered with the strength and durability to dig through tough, rocky soils, it delivers reliable performance on demanding jobsites. The side-shift feature allows operators to trench close to buildings and other obstacles with precision. Easy to operate and built for improved trenching efficiency and long-term reliability, it is an ideal solution for maintenance crews, municipalities, landscaping contractors, and rental facilities.

Bobcat Trencher Attachment

Compatible With

No compatiblity data yet

Specifications

Specification	LT112	LT113	LT213	LT313 (3 ft)	LT313 (4 ft)	LT405	LT414 (4 ft)	LT414 (5 ft)	MX112
Auger Diameter	12 in	12 in	12 in	13 in	13 in	12 in	14.2 in	14.2 in	12 in
Overall Length	60.7 in	74 in	74 in	79.5 in	89.5 in	105.3 in	90 in	104 in	68.2 in
Frame Width (Std.)	36 in	36 in	56 in	56 in	56 in	65 in	56.2 in	56.2 in	30.6 in
Overall Width	36 in	36 in	56 in	56 in	56 in	63 in	56.25 in	56.3 in	30.6 in
Operating Weight	613 lbs	638 lbs	725 lbs	955 lbs	980 lbs	1,520 lbs	1,181 lbs	1,218 lbs	570 lbs
Maximum Operating Pressure	3,000 psi	3,000 psi	3,300 psi	3,300 psi	3,300 psi	3,300 psi	3,300 psi	3,300 psi	3,000 psi
Side Shift Travel	16.1 in	16.1 in	23.1 in	23.1 in	23.1 in	26 in	21.8 in	21.8 in	16.1 in
Side Shift Type	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual
Standard Boom Length	39.4 in	52.5 in	52.5 in	55.5 in	65.5 in	63 in	65 in	79 in	39.4 in
Dig Depth	2 ft	3 ft	3 ft	36 in	4 ft	4 ft	50 in	62 in	2 ft
Auger Clearance	13.8–15.8 in	13.8–15.8 in	13.8–15.8 in	24.0–27.0 in	24.0–27.0 in	19.0 in	23.4–26.4 in	23.4–26.4 in	—
Widths Available (Min)	4 in	4 in	4 in	6 in	6 in	6 in	6 in	6 in	4 in
Widths Available (Max)	8 in	8 in	8 in	12 in	12 in	12 in	12 in	8 in	8 in
Chain Options	Multiple	Multiple	Multiple	Multiple	Multiple	Multiple	Multiple	Multiple	Multiple
