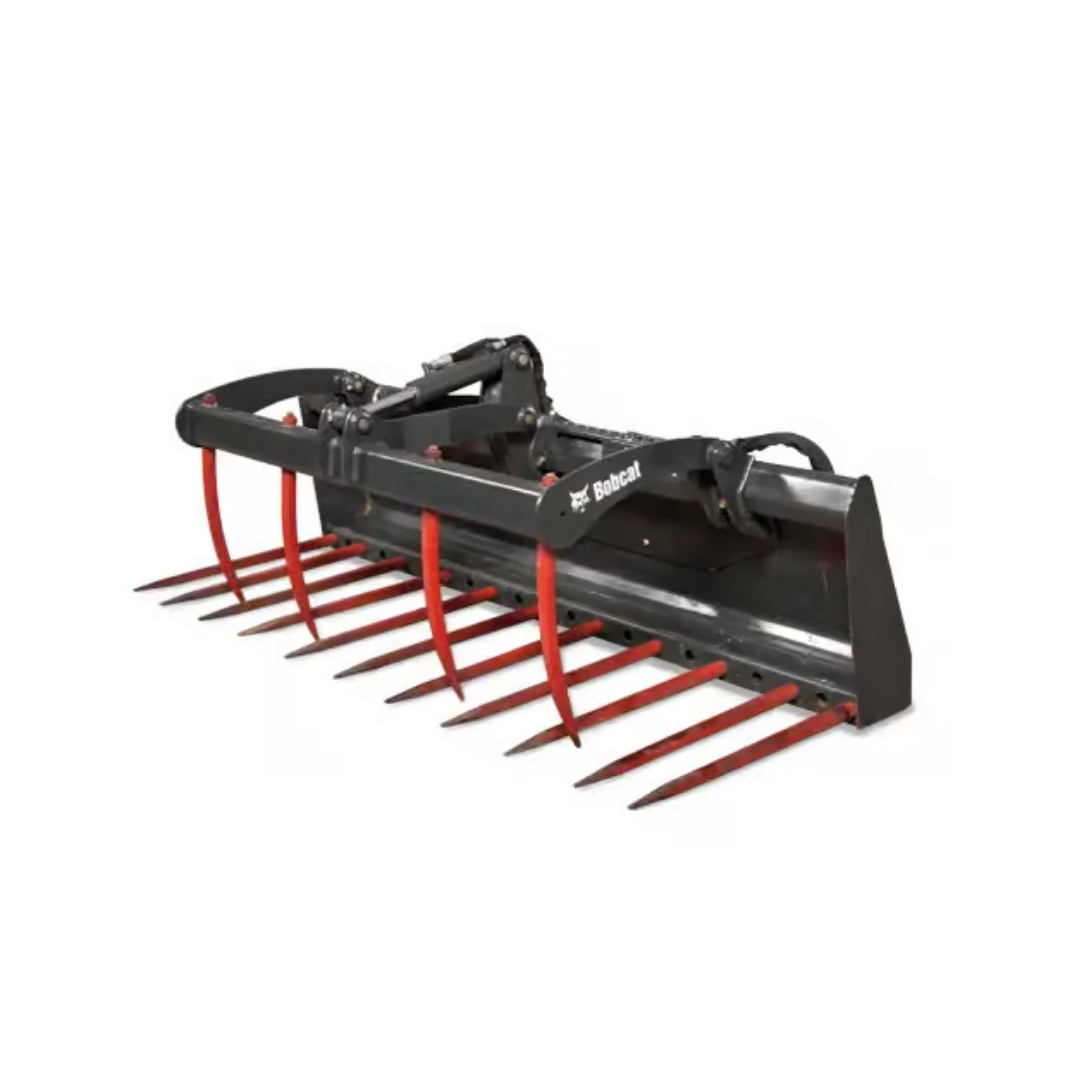

Bobcat Utility Grapple Attachment

Designed with added holding power, this attachment bites down securely on even the loosest materials for confident handling. Its design allows the bucket or fork to work close to fences, stall walls, and other obstacles, maximizing material movement in tight areas. Available in fork-and-grapple or bucket-and-grapple configurations, it offers the versatility needed to handle a wide range of farm and ranch tasks. Forged teeth deliver exceptional strength while maintaining a low overall weight for improved performance.

Bobcat Utility Grapple Attachment

Compatible With

Compact Track Loaders – T450, T550, T595, T64, T650, T66, T76

Compact Tractors – CT2025 HST, CT2025 MST, CT2035 HST, CT2035 MST, CT2040 HST, CT2040 MST, CT2535, CT2540, CT4045 HST, CT4045 SST, CT4050 HST, CT4050 SST, CT4055 SST, CT4058 HST, CT4545 HST, CT4558 HST, CT5545 HST, CT5550 HST, CT5555 HST, CT5558 HST

Mini Track Loaders – MT100, MT120

Skid-Steer Loaders – S450, S510, S590, S64, S650, S66, S70, S76, S770, S86

Small Articulated Loaders – L23, L28

Toolcat Utility Work Machines – UW53, UW56





Length30.7 in – 34.8 in
Grapple Width32 in – 55 in
Number of Grapple Tines1 – 4
Operating Weight157 lbs – 297 lbs
Width35.1 in – 58 in
Height28.8 in – 29.9 in
Number of Fork Teeth (Factory)3 – 5
Number of Fork Teeth (Possible)5 – 8
Grapple Width32 in – 55 in
Number of Grapple Tines1 – 4
Open Height41.7 in – 42.5 in
Open Length34.7 in – 40.1 in
Closed Height28.8 in – 29.9 in
Closed Length31.6 in – 34.8 in

Specifications

SpecificationGP Grapple 32″GP Grapple 55″Utility Hose Kit / ExtensionsUtility Grapple 32″Utility Grapple 55″
Grapple Width32 in55 in36 in32 in55 in
Operating Weight157 lbs180 lbs297 lbs157 lbs243 lbs
Overall Width35.1 in58 in36 in35.1 in58 in
Closed Height28.8 in29.4 in29.8 in29.5 in29.9 in
Closed Length31.6 in32.7 in34.7 in31.7 in34.8 in
Open Height41.7 in41.9 in41.7 in42.5 in42.3 in
Open Length35.6 in38.6 in34.7 in35.7 in40.1 in
Number of Fork Teeth (Factory)34534
Number of Fork Teeth (Maximum)58558
Number of Grapple Tines34134
