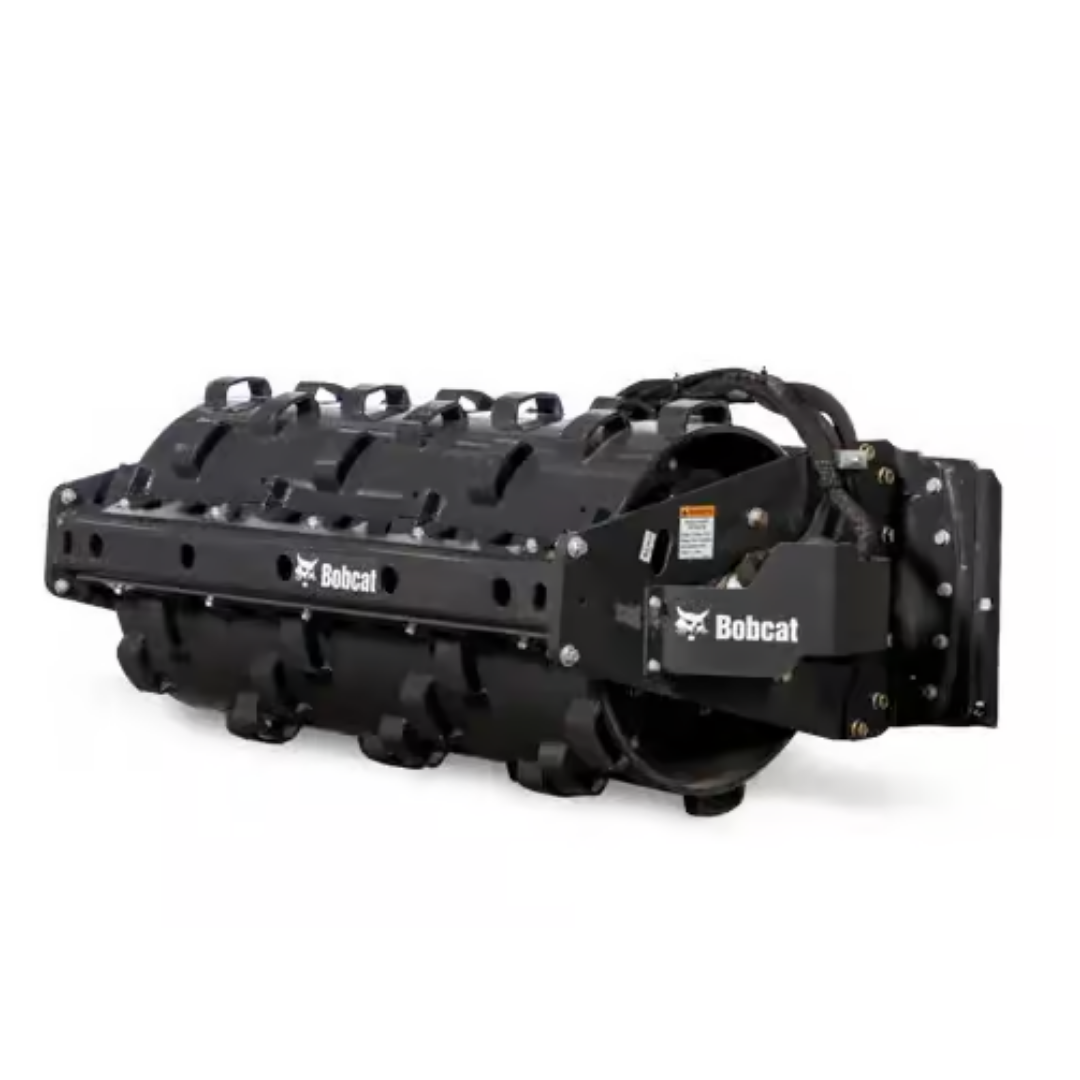

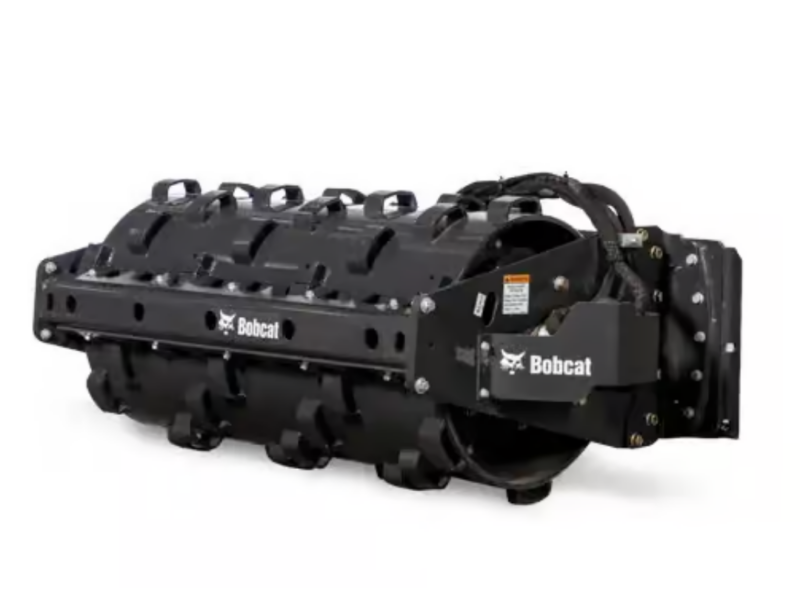

Bobcat Vibratory Roller Attachment

Tackle uneven terrain and large jobs efficiently with the vibratory roller attachment. Designed for site preparation, landscaping, and paving operations, it delivers reliable compaction performance. The roller hard-packs material in both forward and reverse for added productivity. An offset drum design allows operators to work close to sidewalks, walls, and curbs with precision. Easy to transport over the road, the vibratory roller achieves faster results in fewer passes.

Bobcat Vibratory Roller Attachment

Compatible With

No compatiblity data yet

Specifications

SpecificationPadded Drum 48″Padded Drum 73″Smooth Drum 48″Smooth Drum 73″Smooth Drum 80″
Overall Length38.1 in37.9 in38.1 in37.9 in37.9 in
Drum Width48 in73 in48 in73 in80 in
Drum Diameter25.4 in25.4 in26 in26 in26 in
Overall Width60.5 in79 in60.5 in79 in86 in
Overall Height25.4 in25.4 in26 in26 in26 in
Operating Weight1,778 lbs2,189 lbs1,788 lbs2,208 lbs2,320 lbs
Drum Offset9 in to rightCentered9 in to rightCenteredCentered
Drum Oscillation±12°±7.5°±12°±7.5°±7.5°
Covers Right-Side Tires On66 in loaders73 in loaders66 in loaders73 in loaders80 in loaders
Dynamic Force10,519 lbs @ 17 gpm
14,244 lbs @ 20 gpm
9,905 lbs @ 20 gpm
14,263 lbs @ 24 gpm
10,519 lbs @ 17 gpm
14,244 lbs @ 20 gpm
9,905 lbs @ 20 gpm
14,263 lbs @ 24 gpm
9,905 lbs @ 20 gpm
14,263 lbs @ 24 gpm
Frequency2,448 vpm @ 17 gpm
2,879 vpm @ 20 gpm
2,401 vpm @ 20 gpm
2,882 vpm @ 24 gpm
2,448 vpm @ 17 gpm
2,879 vpm @ 20 gpm
2,401 vpm @ 20 gpm
2,882 vpm @ 24 gpm
2,401 vpm @ 20 gpm
2,882 vpm @ 24 gpm
Number of Pads78102
