E10

Starting At

0% For 48 Months*

$567/MO

Available For Order

E10

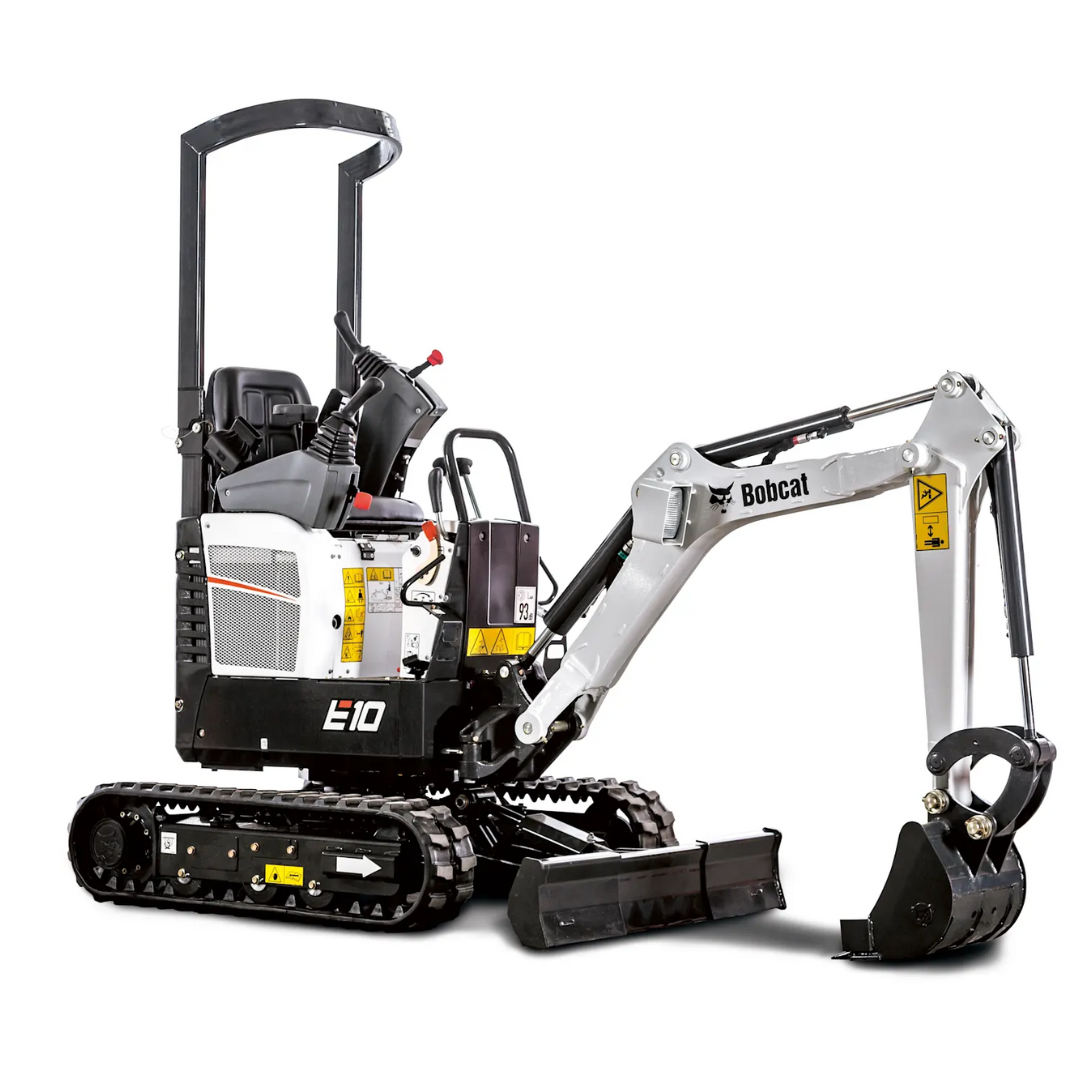

Zero tail-swing Bobcat E10: compact, powerful mini excavator with retractable undercarriage, TOPS, and ergonomic controls for tight-access jobsites.
10 hp

Horsepower

2,593 lb

Operating Weight

6

Dig Depth

E10

Specs

Key Specifications

Operating Weight 2593 lbs

Bucket Digging Force 1865 lbf

Maximum Reach at Ground Level 10.2 ft

Width 28 in

Maximum Governed RPM 2370 rpm

Horsepower 10.2 hp

Turbocharged Engine no

Performance

Operating Weight 2593 lbs

Weight Class 1 t

Travel Speed – High 1.7 mph

Travel Speed – Low 1.3 mph

Arm Digging Force 1248 lbf

Bucket Digging Force 1865 lbf

Rated Lift Capacity 965 lbs

Lift Radius 79 in

Boom Swing – Left 67 deg

Boom Swing – Right 64 deg

Maximum Dig Depth 6 ft

Max Dump Height 6 ft

Maximum Reach at Ground Level 10.2 ft

Fuel Tank 4.2 gal
Auxiliary Std Flow 5.3 gpm
Auxiliary Pressure 2756 psi

Dimensions

Length 110 in

Overall Length in Travel Position 110 in

Width 28 in

Height 87 in

Height with Operator Cab 87 in

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
