E20

Starting At

0% For 48 Months*

$567/MO

Available For Order

E20

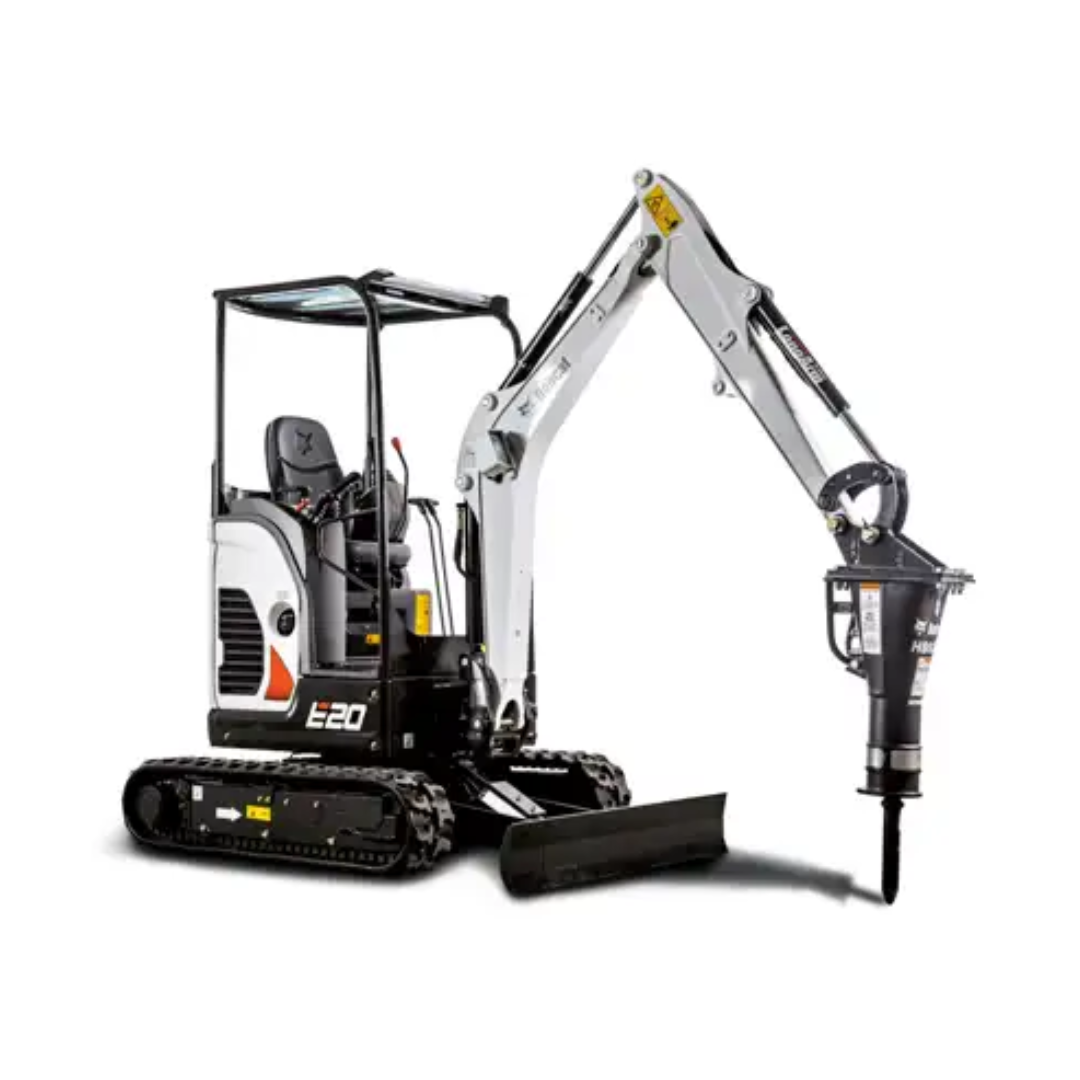

Bobcat E20: 15-hp mini excavator with zero tail-swing, retractable undercarriage, top-mounted boom, and unmatched performance in tight spaces.
15 hp

Horsepower

4,306 lb

Operating Weight

8.4

Dig Depth

E20

Specs

Key Specifications

Operating Weight 4306  lbs

Bucket Digging Force 4684 lbs

Maximum Reach at Ground Level 167.9 in

Width 53.5 in

Maximum Governed RPM 2400 rpm

Horsepower 15 hp

Turbocharged Engine no

Performance

Operating Weight 4306 lbs

Weight Class 2 t

Travel Speed – High 2.6 mph

Travel Speed – Low 1.3 mph

Arm Digging Force 2086 lbs

Bucket Digging Force 4684 lbs

Rated Lift Capacity 1098 lbs

Lift Radius 118 in

Boom Swing – Left 80 deg

Boom Swing – Right 60 deg

Maximum Dig Depth 101 in

Max Dump Height 106 in

Maximum Reach at Ground Level 167.9 in

Fuel Tank 5 gal
Auxiliary Std Flow 7.9 gpm
Auxiliary Pressure 2610 psi

Dimensions

Length 145.2 in

Overall Length in Travel Position 145.2 in

Width 53.5 in

Height 90.4 in

Height with Operator Cab 90.4 in

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
