E26

Starting At

0% For 48 Months*

$567/MO

Available For Order

E26

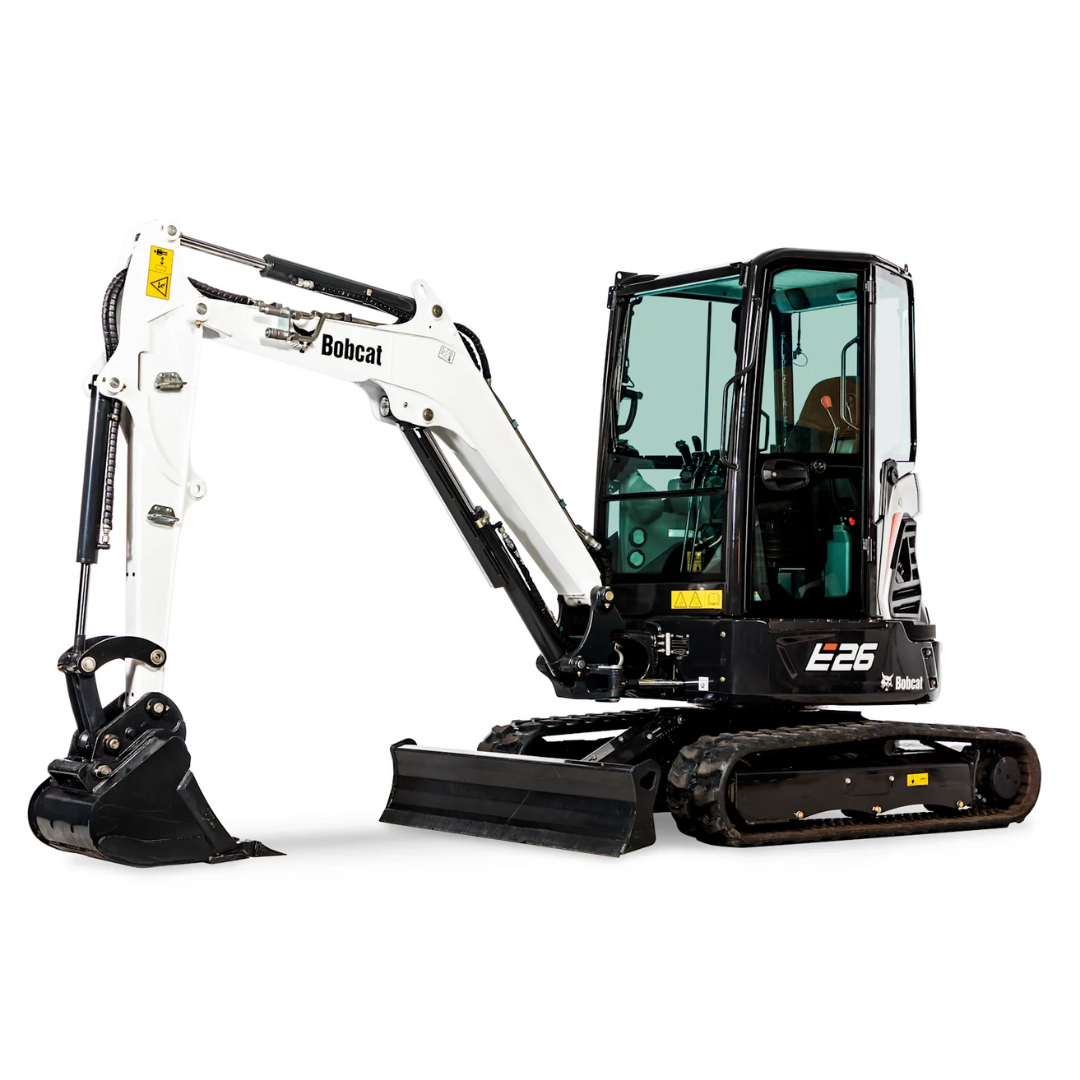

Bobcat E26: Long-arm, minimal tail-swing excavator with extended reach, in-track swing frame, and spacious cab—perfect for tight, hard-to-reach jobsites.
25 hp

Horsepower

6,489 lb

Operating Weight

114.4

Dig Depth

E26

Specs

Key Specifications

Operating Weight 6489 lbs

Bucket Digging Force 5652 lbf

Maximum Reach at Ground Level 192 in

Width 61 in

Maximum Governed RPM 2550 rpm

Horsepower 24.8 hp

Turbocharged Engine no

Performance

Operating Weight 6489 lbs

Weight Class 3 t

Travel Speed – High 3.2 mph

Travel Speed – Low 1.8 mph

Arm Digging Force 3547 lbf

Bucket Digging Force 5652 lbf

Rated Lift Capacity 2359 lbs

Lift Radius 118 in

Boom Swing – Left 70 deg

Boom Swing – Right 55 deg

Maximum Dig Depth 114.4 in

Max Dump Height 128.8 in

Maximum Reach at Ground Level 192 in

Fuel Tank 9.1 gal
Auxiliary Std Flow 14.2 gpm
Auxiliary Pressure 2611 psi

Dimensions

Length 170.4 in

Overall Length in Travel Position 170.4 in

Width 61 in

Height 96 in

Height with Operator Cab 96 in

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
