E40

Starting At

0% For 48 Months*

$567/MO

Available For Order

E40

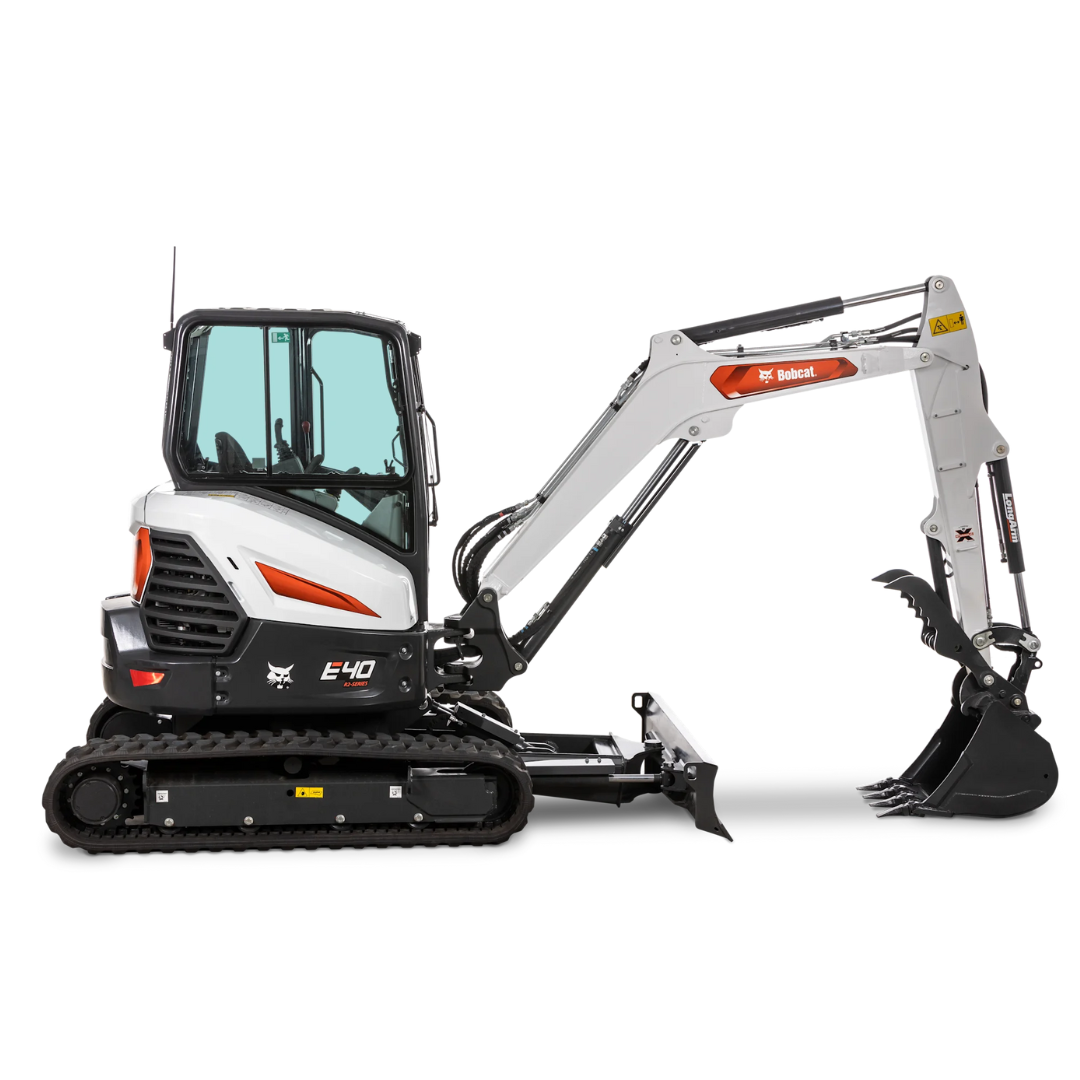

Bobcat E40: High-lift, minimal tail-swing compact excavator with a non-DPF engine, standard long arm, and powerful performance in tight spaces.
40 hp

Horsepower

9,180 lb

Operating Weight

130.4 in

Dig Depth

E40

Specs

Key Specifications

Operating Weight 9180 lbs

Bucket Digging Force 7284 lbf

Maximum Reach at Ground Level 215.2 in

Width 72.8 in

Maximum Governed RPM 2400 rpm

Horsepower 40.4 hp

Turbocharged Engine yes

Performance

Operating Weight 9180 lbs

Weight Class 4 t

Travel Speed – High 3.2 mph

Travel Speed – Low 1.6 mph

Arm Digging Force 4074 lbf

Bucket Digging Force 7284 lbf

Rated Lift Capacity 3939 lbs

Lift Radius 118 in

Boom Swing – Left 75 deg

Boom Swing – Right 55 deg

Maximum Dig Depth 130.4 in

Max Dump Height 146.8 in

Maximum Reach at Ground Level 215.2 in

Fuel Tank 13.7 gal
Auxiliary Std Flow 16.9 gpm

Dimensions

Length 192.3 in
Width 72.8 in
Height 98.7 in

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
