B760

Starting At

0% For 48 Months*

$567/MO

Available For Order

B760

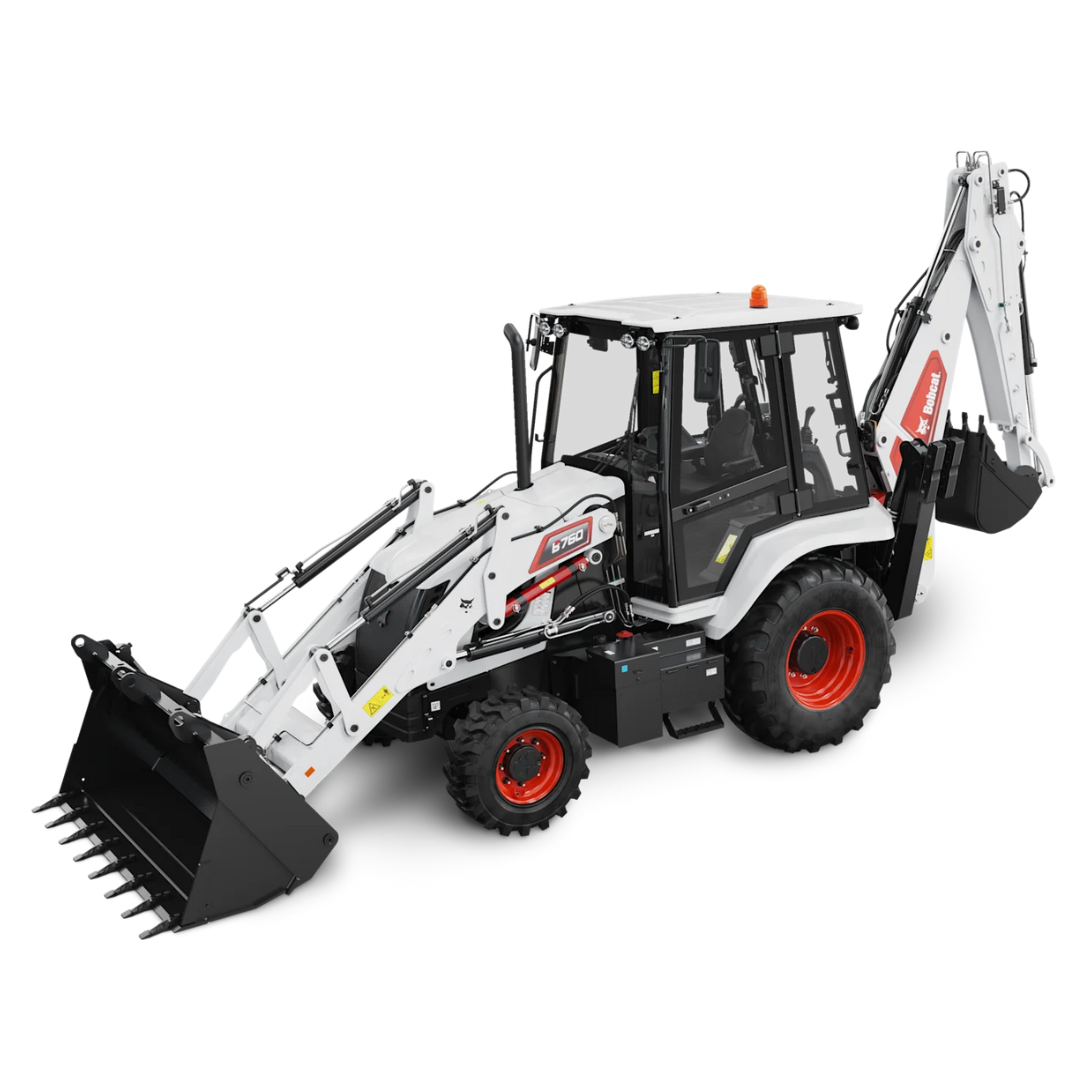

Bobcat B760 backhoe loader delivers 18.4 ft dig depth, 7,985 lb lift, and a 96-hp turbo engine. Double duty performance for tough jobs.
96

Horsepower

Operating Capacity

19,274 LBS

Operating Weights

B760

Specs

Key Specifications

Horsepower 96 hp

Transmission Type Powershift

Overall Length in Travel Position 298 in

Ground Clearance 13.3 in

Height to Bucket Hinge Pin 136 in

Maximum Dig Depth 221.4 in

Max Dump Height 188.3 in

Reach From Center of Swing Point 265.2 in

Differential Lock Standard

Heater Air Conditioning Optional

Selectable 4 Wheel Drive Standard

Extendable Arm Standard

Ride Control Standard

Horsepower 96 hp
Turbocharged Engine yes

Performance

Transmission Type Powershift
Operating Weight 19274 lbs

Dimensions

Overall Length in Travel Position 298 in

Ground Clearance 13.3 in

Wheelbase 87.4 in

Height to Bucket Hinge Pin 136 in

Arm Digging Force 9667 lbf

Bucket Digging Force 14388 lbf

Maximum Dig Depth 221.4 in

Max Dump Height 188.3 in

Reach From Center of Swing Point 265.2 in



** Listed specs based on machine base model. Actual specs may vary depending on model and options **
