L28

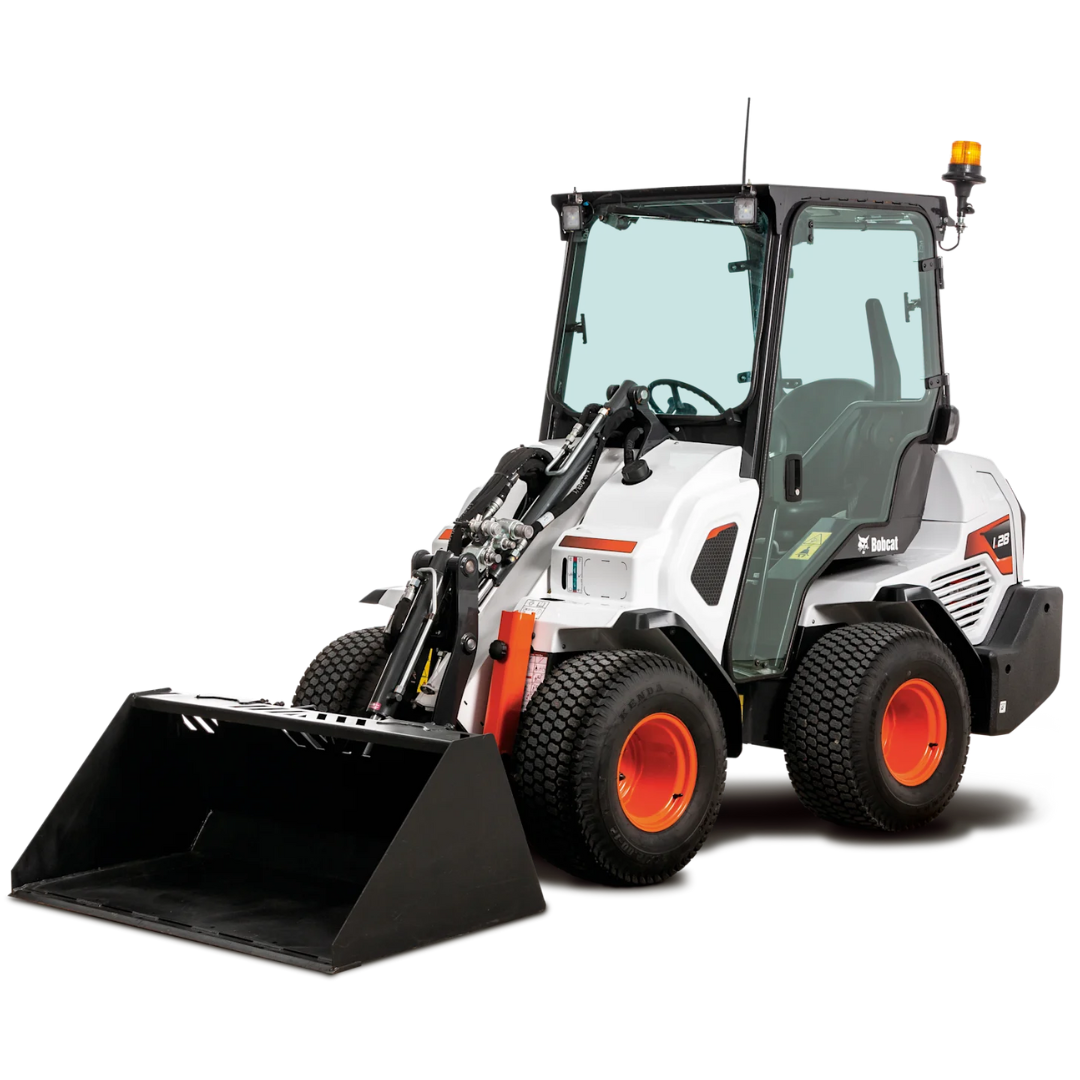

Compact yet powerful, the Bobcat L28 small articulated loader offers big lift capacity, a telescoping arm, and tight-turning agility for confined spaces.
24.8

Horsepower

Operating Capacity

4,195 LBS

Operating Weights

L28

Specs

Key Specifications

Horsepower 24.8 hp
Rated Operating Capacity (ISO) (Straight) 1534 lbs
Rated Operating Capacity (ISO) (Articulated) 1222 lbs
Operating Weight 4195 lbs
Auxiliary Std Flow 11.4 gpm
Width (over tires) 46.5 in
Fuel Consumption 1.1 gph

Performance

Rated Operating Capacity (ISO) (Straight) 1534 lbs

Rated Operating Capacity (ISO) (Articulated) 1222 lbs

Tipping Load – Straight 3068 lbs

ROC with Counterweight Option – Articulated 1475 lbs

ROC with Counterweight Option – Straight 1952 lbs

Tipping load – Articulated 2444 lbs

Operating Weight 4195 lbs

Travel Speed 8.3 mph

Fuel Tank 9.6 gal

System Relief @ Quick Couplers 2900 psi

Auxiliary Std Flow 11.4 gpm

Dimensions

Height to Bucket Hinge Pin – Extended 104.4 in

Height to Bucket Hinge Pin – Retracted 85.4 in

Inside Turning Radius 78.2 in

Outside Turning Radius 100.9 in

Articulation Angle 43 deg

Length without Attachment 93.2 in

Length with Standard Bucket 122.4 in

Width (with bucket) 50 in

Width (over tires) 46.5 in

Dump Angle @ Maximum Height 40 deg

Reach @ Maximum Height 30.9 in

Ground Clearance 5.5 in

Rollback Angle 32 deg

Wheelbase 47.2 in

Tire Size 23X10.5-12, 8 PLY

Wheel Tread 36.4 in

Main Drive Hydrostatic drive with 4 individual drive motors

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
