S76

Starting At

0% For 48 Months*

$567/MO

Available For Order

S76

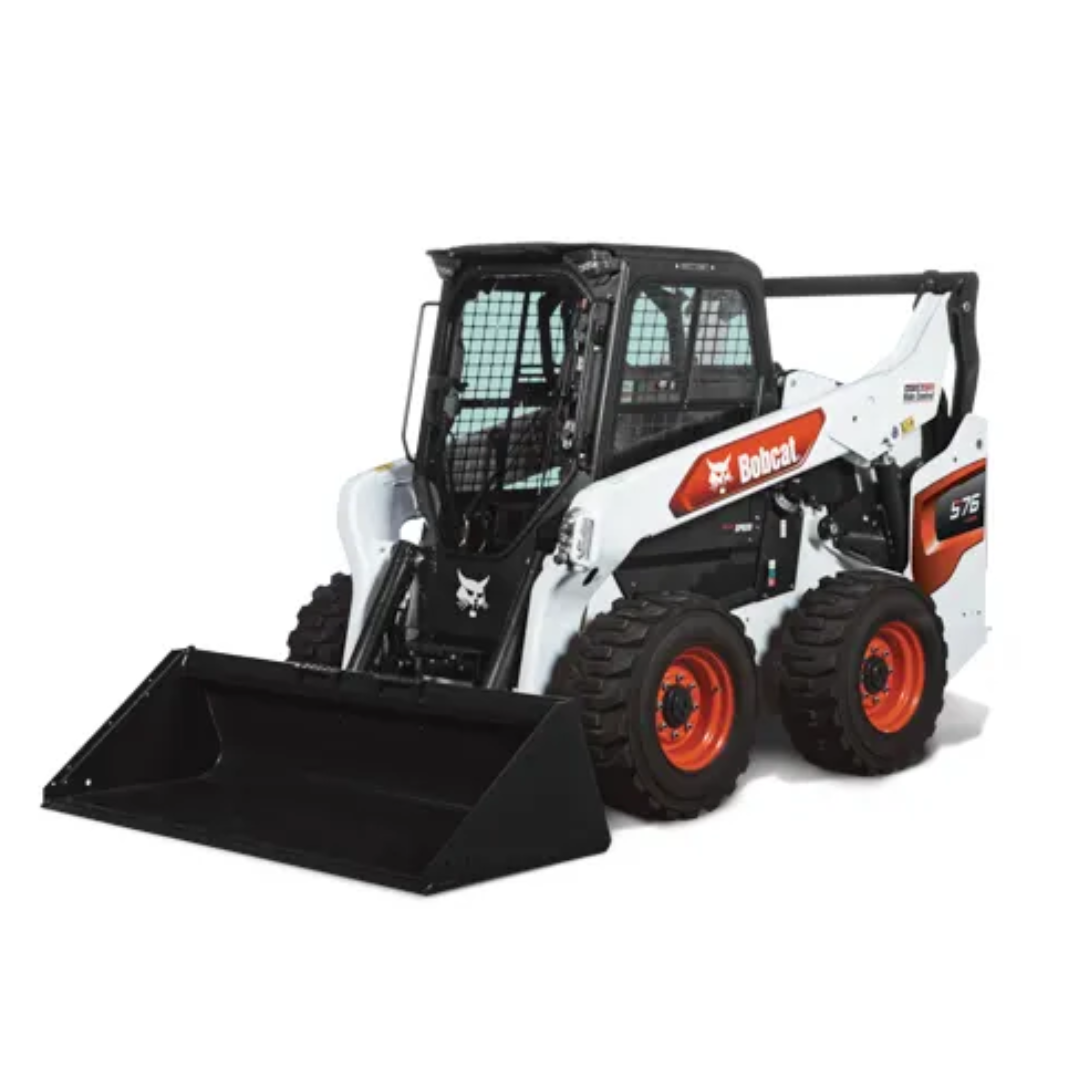

Bobcat S76 skid-steer loader delivers power, durability, comfort, and advanced controls to tackle tough jobs with ease and precision.
74

Horsepower

2,900 LBS

Operating Capacity

8,615 LBS

Operating Weights

S76

Specs

Key Specifications

Horsepower 74 hp

Rated Operating Capacity (ISO) 2900 lbs

Operating Weight 8615 lbs

Auxiliary Std Flow 23.3 gpm

Auxiliary High Flow 30.3 gpm

Joystick Control Optional

Horsepower Management Included with SJC Option

Horsepower 74 hp

Turbocharged Engine yes

Performance



Rated Operating Capacity (ISO) 2900 lbs

Rated Operating Capacity 300 lb. Counterweight 3100 lbs

Rated Operating Capacity 200 lb. Counterweight 3050 lbs

Tipping Load 5800 lbs

Operating Weight 8615 lbs

Travel Speed 6.8 mph

Travel Speed (2-speed option) 11.8 mph

Fuel Tank 31.7 gal

Hydraulic System Pressure (Standard and High Flow) 3500 psi

System Relief @ Quick Couplers 3500 psi

Auxiliary Std Flow 23.3 gpm

Auxiliary High Flow 30.3 gpm

Dimensions

Length 141.9 in

Length without Attachment 113.9 in

Length with Standard Bucket 147.1 in

Width 72 in

Width (with bucket) 74 in

Height 81.8 in

Height with Operator Cab 81.8 in

Height to Bucket Hinge Pin 128.3 in

Reach @ Maximum Height 33.5 in

Turning Radius 87.7 in

Wheelbase 48.3 in

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
