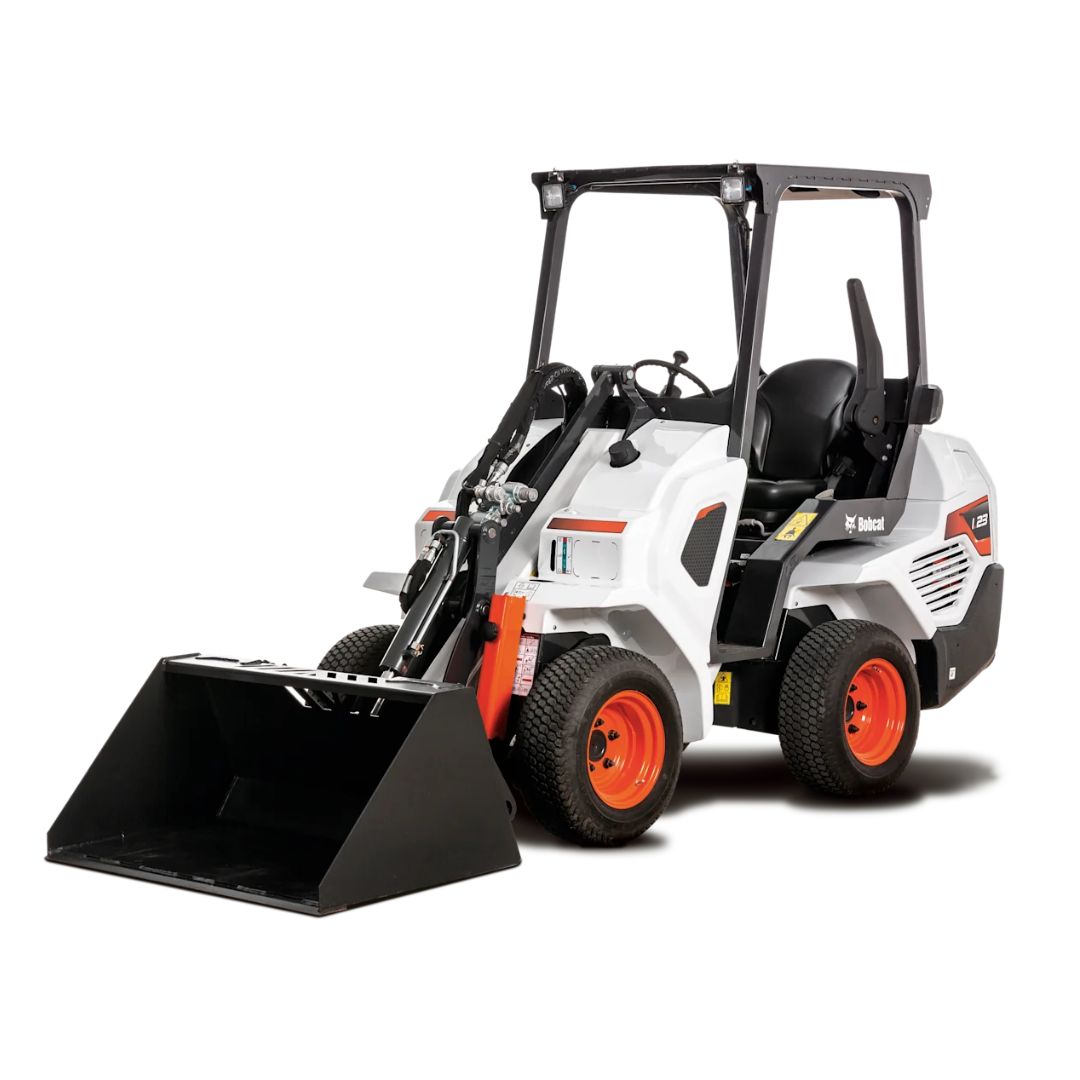

L23

The L23 delivers big lift in a compact, turf-friendly loader with minimal ground disturbance, tight-turning articulation, and impressive capacity.
View New Inventory
24.8

Horsepower

1,159 LBS

Operating Capacity

3,790 LBS

Operating Weights

L23

Specs

Key Specifications

Horsepower 24.8 hp

Rated Operating Capacity (ISO) (Straight) 1395 lbs

Rated Operating Capacity (ISO) (Articulated) 1159 lbs

Operating Weight 3790 lbs

Auxiliary Std Flow 11.4 gpm

Width (over tires) 43.2 in

Horsepower 24.8 hp

Fuel Consumption 1.1 gph

Performance

Rated Operating Capacity (ISO) (Straight) 1395 lbs

Rated Operating Capacity (ISO) (Articulated) 1159 lbs

ROC with Counterweight Option – Articulated 1471 lbs

ROC with Counterweight Option – Straight 1815 lbs

Operating Weight 3790 lbs

Travel Speed 8.2 mph

Fuel Tank 9.6 gal

System Relief @ Quick Couplers 2900 psi

Auxiliary Std Flow 11.4 gpm

Dimensions

Height to Bucket Hinge Pin – Extended 85.4 in

Inside Turning Radius 77.2 in

Outside Turning Radius 100.9 in

Articulation Angle 43 deg

Length without Attachment 93.2 in

Length with Standard Bucket 122.4 in

Width (with bucket) 44 in

Width (over tires) 43.2 in

Dump Angle @ Maximum Height 40 deg

Reach @ Maximum Height 16.8 in

Ground Clearance 5.5 in

Rollback Angle 32 deg

Wheelbase  47.2 in

Tire Size 23X8.5-12

Wheel Tread 34.4 in

Drive System L23

Main Drive Hydrostatic pump driving 4 independent wheel motors

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
