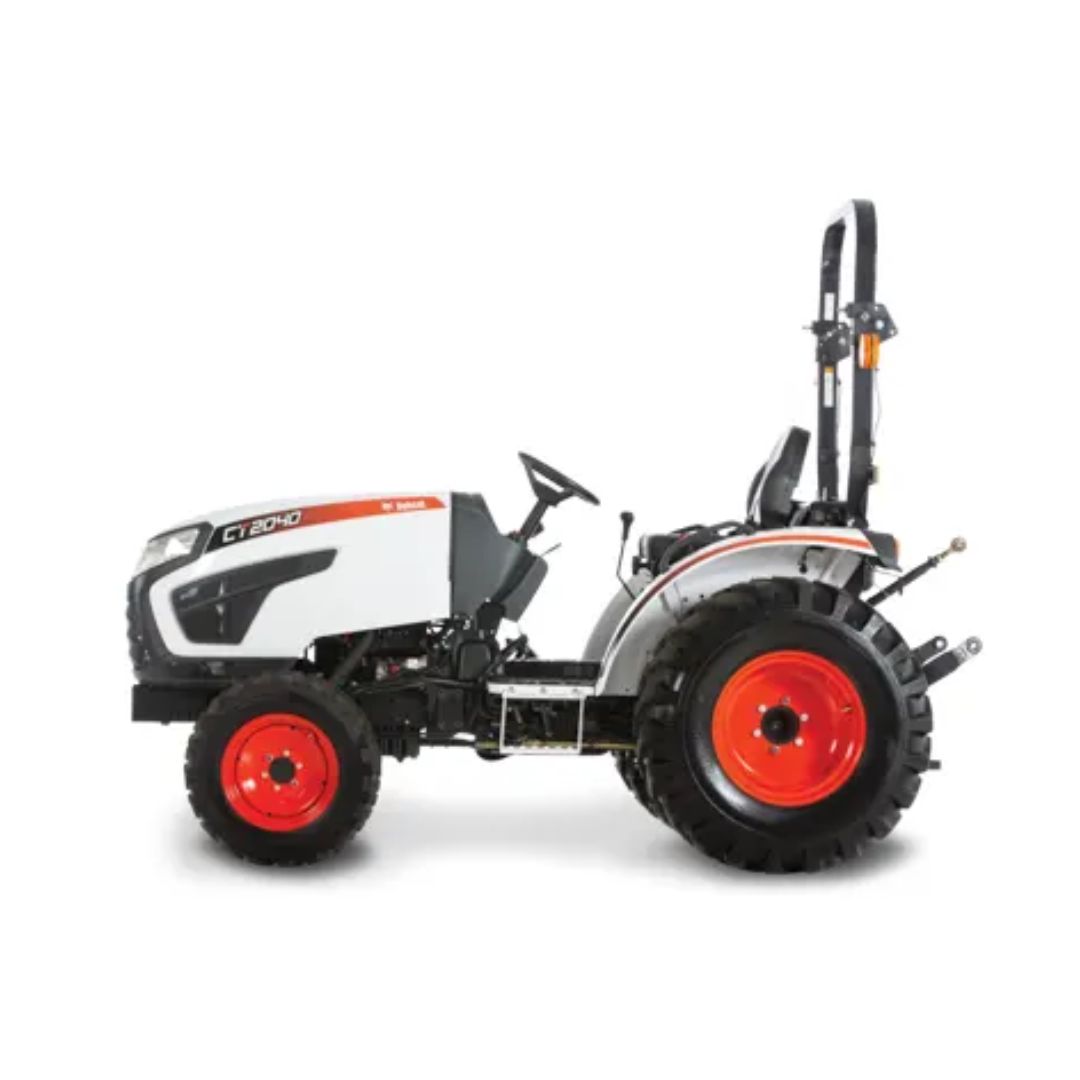

BOBCAT CT2040

Starting At

0% For 48 Months*

$567/MO

Available For Order

BOBCAT CT2040

40-hp Bobcat CT2040 delivers heavy-duty performance in tight spaces. Manual or hydrostatic, with PTO options and intuitive loader controls.

Engine Horsepower

PTO Horsepower

Operating Weight

BOBCAT CT2040

Specs

Key Specifications

CT2040 MSTCT2040 HST
Horsepower: 39.6 hpHorsepower: 39.6 hp
Lift Capacity @ 24″ behind lift point: 1631 lbsLift Capacity @ 24″ behind lift point: 1631 lbs
PTO HP: 34.9 hpPTO HP: 31.9 hp
Width: 62.4 inWidth: 62.4 in
Turning Radius: 8.4 ftTurning Radius: 8.4 ft
Wheelbase: 66 inWheelbase: 66 in
Transmission Type: Manual (9×3)Transmission Type: Infinite, 3 Range Hydrostatic
EngineEngine
Engine Model: 3H-TM4AEngine Model: 3H-TH4A
Horsepower: 39.6 hpHorsepower: 39.6 hp
Gross HP: 39.6 hpGross HP: 39.6 hp
Displacement: 111.4 cubic inDisplacement: 111.4 cubic in
RPM: 2600RPM: 2600
Number of Cylinders: 3Number of Cylinders: 3

Performance

CT2040 MSTCT2040 HST
Operating Weight: 3005 lbsOperating Weight: 3005 lbs
Travel Speed: 13.8 mphTravel Speed: 14 mph
Travel Speed – Reverse: 9.3 mphTravel Speed – Reverse: 9.7 mph
Lift Capacity @ 24″ behind lift point: 1631 lbsLift Capacity @ 24″ behind lift point: 1631 lbs
3-pt Lift Control Type: Hydraulic Position Control System3-pt Lift Control Type: Hydraulic Position Control System
Rear PTO – RPM: 540Rear PTO – RPM: 540
PTO HP: 34.9 hpPTO HP: 31.9 hp

Capacities |
—|—
Fuel Tank: 9 gal | Fuel Tank: 9 gal


Hydraulic System |
—|—
Steering Hydraulic Flow: 4.5 gpm | Steering Hydraulic Flow: 4.5 gpm
Total Hydraulic Flow: 11.4 gpm | Total Hydraulic Flow: 11.4 gpm
Implement Hydraulic Flow: 6.9 gpm | Implement Hydraulic Flow: 6.9 gpm

Dimensions

Width 62.4 in
Ground Clearance 11.7 in
Turning Radius 8.4 ft
Wheelbase 66 in
Front Tire Size (AG, Turf) 27×8.5-15 (7-16, 27×8.5-15)
Rear Tire Size Rear Industrial (AG, Turf) 15-19.5 (11.2-24, 41X14-20)

Table Data Test

No table data added yet...

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
