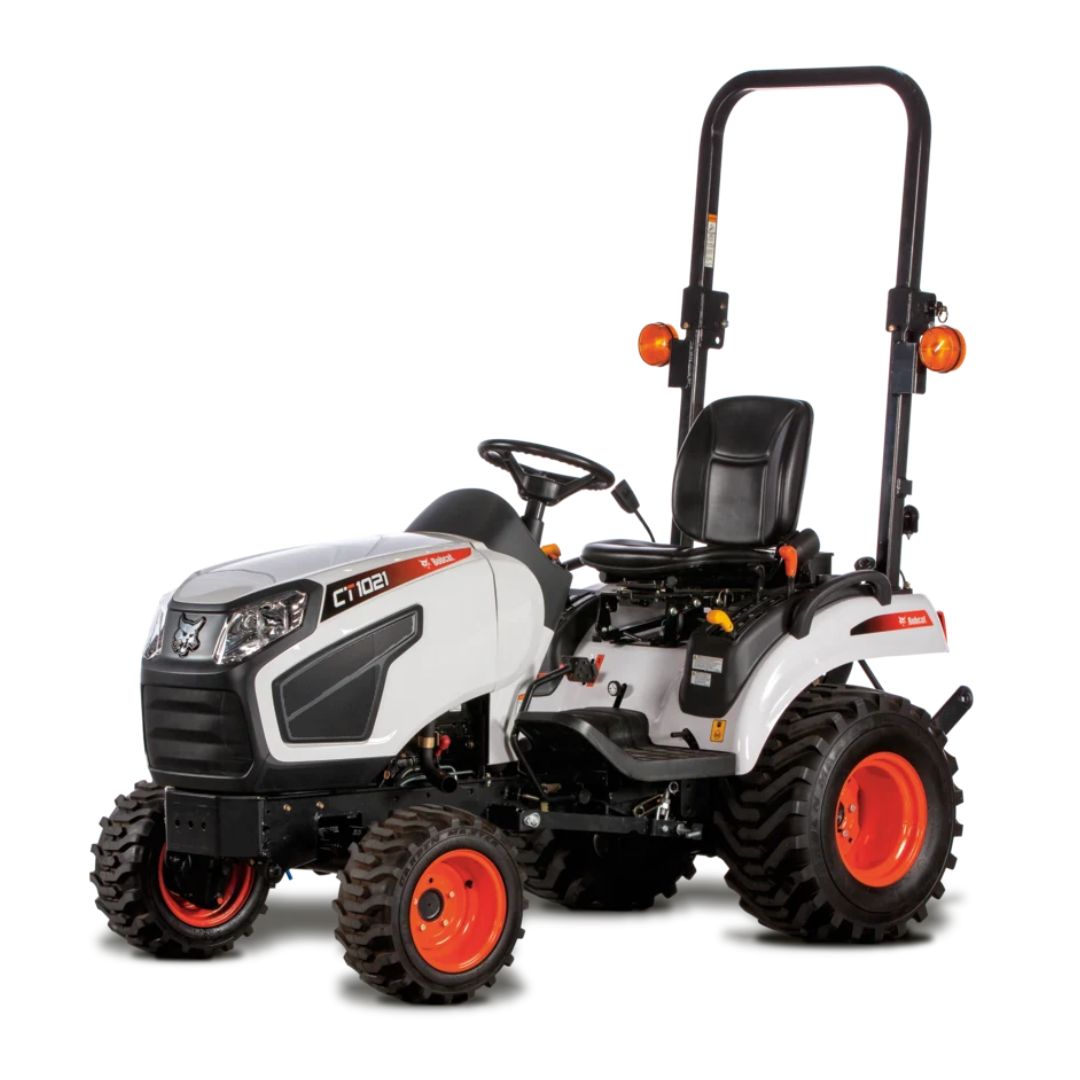

BOBCAT CT1021

Starting At

0% For 48 Months*

$567/MO

Available For Order

BOBCAT CT1021

Shop the Bobcat CT1021 compact tractor—reliable 21-hp power, 4×4, easy controls, and versatile attachments for mowing, loading & property maintenance.

Engine Horsepower

PTO Horsepower

Operating Weight

BOBCAT CT1021

Specs

Key Specifications

Horsepower 21 hp

Lift Capacity at 24″ behind Lift Point 700 lbs

PTO HP 16.3 hp

Width 45.7 in

Turning Radius 8.4 ft

Wheelbase 55.1 in

Transmission Type  2 Range Hydrostatic

Engine Model 3C100LWH-U2

Horsepower 21 hp

Gross HP 21 hp

Displacement 61.5 cubic in

RPM 3200

Number of Cylinders 3

Performance

Operating Weight 1521 lbs

Travel Speed 11.1 mph

Travel Speed – Reverse 7.6 mph

Lift Capacity at 24″ behind Lift Point 700 lbs

3-pt Lift Control Type Hydraulic Position Control System

Rear PTO – RPM540

PTO HP 16.3 hp

Fuel Tank 6.7 gal

Total Hydraulic Flow 7.2 gpm

Dimensions

Length 99.3 in

Width 45.7 in

Height 87.6 in

Ground Clearance 6.3 in

Turning Radius 8.4 ft

Wheelbase 55.1 in

Front Tire Size Front Industrial (AG, Turf) 18X8.5-10 (18X8.5-10,18X8.5-10 )

Rear Tire Size Rear Industrial (AG, Turf) 26X12-12 (26X12-12,26X12-12 )

Brake Type Wet Multi Disc

Transmission Type Infinite, 2 Range Hydrostatic

Table Data Test

Length99.3in
Width45.7in
Height87.6in
Ground Clearance6.3in
Turning Radius8.4ft
Wheelbase55.1in
Front Tire SizeFront Industrial (AG, Turf) 18X8.5-10 (18X8.5-10,18X8.5-10 )
Rear Tire SizeRear Industrial (AG, Turf) 26X12-12 (26X12-12,26X12-12 )
Brake TypeWet Multi Disc
Transmission TypeInfinite, 2 Range Hydrostatic

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
