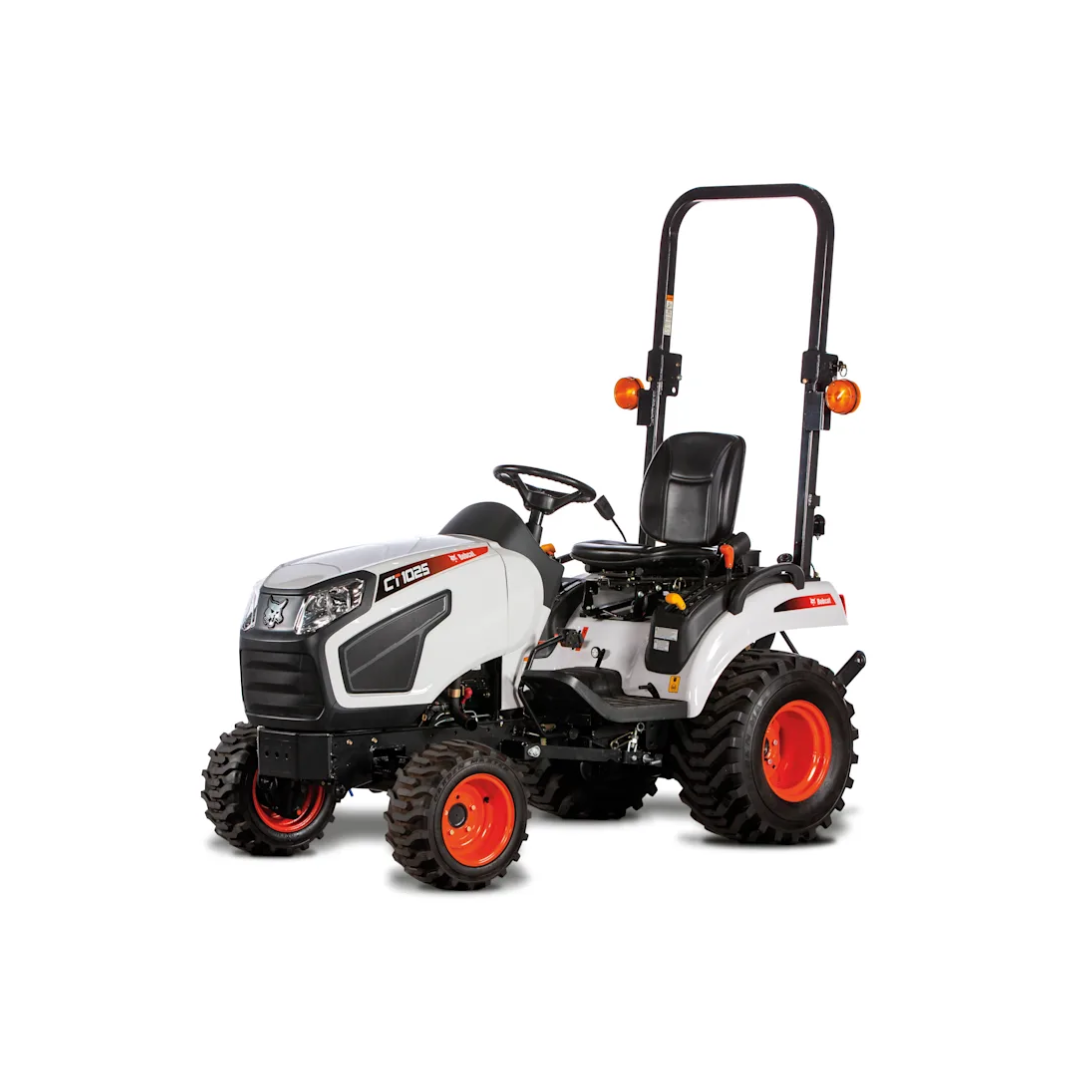

Sub-Compact Tractor CT1025

This 25-hp sub-compact tractor features 4WD, a 2-range hydrostatic transmission, 46-inch width, Category 1 hitch, and rear and mid-PTO.
View New Inventory
24.5

Engine Horsepower

14

PTO Horsepower

1,521

Operating Weight

Sub-Compact Tractor CT1025

Specs

Key Specifications

Horsepower 24.5 hp
Lift Capacity at 24″ behind Lift Point 700 lbs
PTO HP 14 kW
Width 45.7 in
Turning Radius 8.4 ft
Wheelbase 55.1 in
Transmission Type Infinite, 2 Range Hydrostatic
Engine Model 3C100LFH-U1
Horsepower 24.5 hp
Gross HP 24.5 hp
Displacement 62 cubic in
RPM 3200
Number of Cylinders 3

Performance

Operating Weight 1521 lbs
Travel Speed 11.1 mph
Travel Speed – Reverse 7.6 mph
Lift Capacity at 24″ behind Lift Point 700 lbs
3-pt Lift Control Type Hydraulic Position Control System
Rear PTO – RPM 540
PTO HP 14 kW
Fuel Tank 6.7 gal
Total Hydraulic Flow 7.2 gpm

Dimensions

Length 99.3 in
Width 45.7 in
Height 87.6 in
Ground Clearance 6.3 in
Turning Radius 8.4 ft
Wheelbase 55.1 in
Brake Type Wet Multi Disc
Transmission Type Infinite, 2 Range Hydrostatic

Table Data Test

No table data added yet...

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
