CT2535

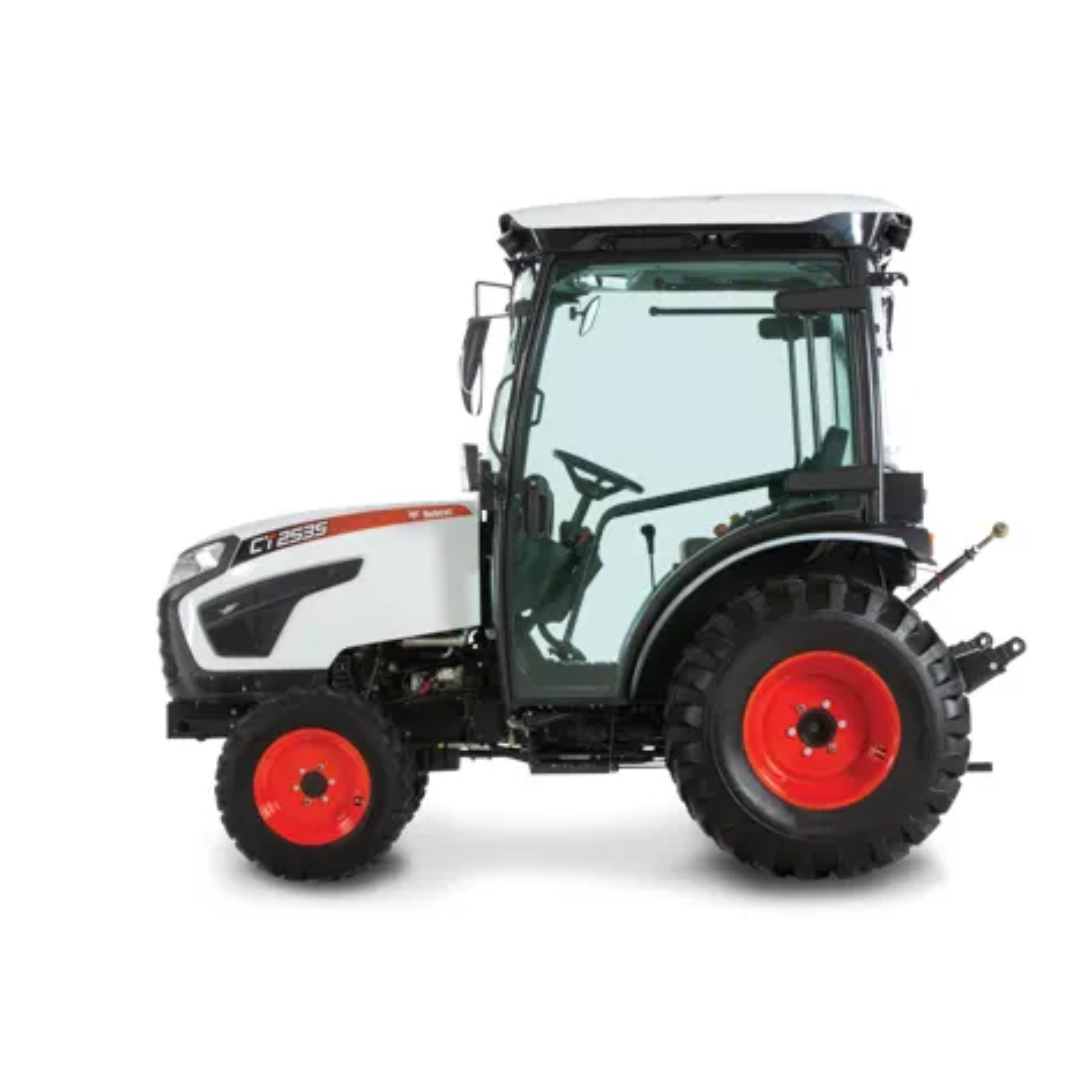

Comfortable 35-hp compact tractor with cab, hydrostatic transmission, rear PTO, and easy loader control for versatile acreage work.
34.9

Engine Horsepower

29.4

PTO Horsepower

3,585

Operating Weight

CT2535

Specs

Key Specifications

Horsepower 34.9 hp

Lift Capacity at 24″ behind Lift Point 1631 lbs

PTO HP 29.4 HP

Engine Model 3F-TM(H)4

Horsepower 34.9 hp

Gross HP 34.9 hp

Displacement 111 cubic in

RPM 2600

Number of Cylinders 3

Width 63 in

Turning Radius 8.9 ft

Wheelbase 66 in

Transmission Type  Infinite, 3 Range Hydrostatic

Performance

Operating Weight 3585 lbs

Travel Speed 14 mph

Travel Speed – Reverse 9.7 mph

Lift Capacity at 24″ behind Lift Point 1631 lbs

3-pt Lift Control Type Hydraulic Position Control System

Rear PTO – RPM540

PTO HP29.4 HP

Fuel Tank9 gal

Implement Hydraulic Flow6.9 gpm

Steering Hydraulic Flow4.5 gpm

Total Hydraulic Flow11.4 gpm

Dimensions

Length 120.9 in

Width 63 in

Height 91 in

Ground Clearance 12.3 in

Turning Radius 8.9 ft

Wheelbase 66 in

Brake Type Wet Multi Disc

Transmission Type Infinite, 3 Range Hydrostatic

Table Data Test

No table data added yet...

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
