Compact Tractor CT5545

Starting At

0% For 48 Months*

$567/MO

Call About Our Latest Specials

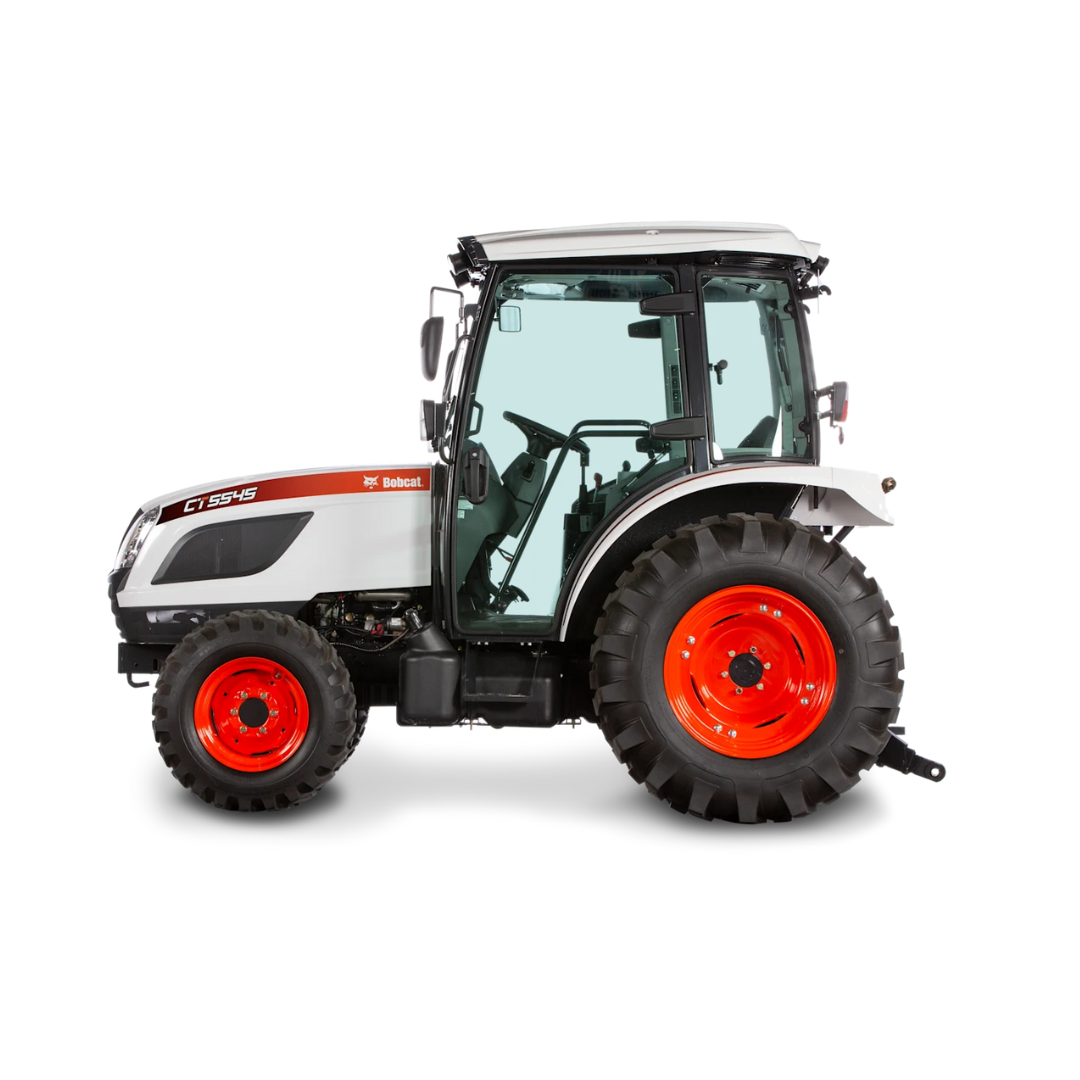

Compact Tractor CT5545

Power through tough jobs with the 45-hp Bobcat CT5545 featuring a turbo engine, hydrostatic transmission, enclosed cab, 4WD, and rear PTO.
45

Engine Horsepower

33.9

PTO Horsepower

4,685

Operating Weight

Compact Tractor CT5545

Specs

Key Specifications

Horsepower 45 hp

Lift Capacity at 24″ behind Lift Point 3177 lbs

PTO HP 33.9 HP

Width 74.2 in

Turning Radius 9.8 ft

Wheelbase 75.6 in

Transmission Type Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)

Engine Model 3FT-TH4-U

Horsepower 45 hp

Gross HP 45 hp

Displacement 111 cubic in

RPM 2750

Number of Cylinders 3

Performance

Operating Weight 4685 lbs

Travel Speed 17.5 mph

Travel Speed – Reverse 17.5 mph

Lift Capacity at 24″ behind Lift Point 3177 lbs

3-pt Lift Control Type Position with Draft Control

Rear PTO – RPM 540

PTO HP 33.9 HP

Fuel Tank 14.8 gal

Hydraulic System CT5545 HST

Implement Hydraulic Flow 9.6 gpm

Steering Hydraulic Flow 8.2 gpm

Total Hydraulic Flow 17.8 gpm

Dimensions

Length 139.6 in

Width 74.2 in

Height 94.2 in

Ground Clearance 13 in

Turning Radius 9.8 ft

Wheelbase 75.6 in

Brake Type Wet Multi Disc

Transmission Type Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)



Table Data Test

No table data added yet...

** Listed specs based on machine base model. Actual specs may vary depending on model and options **
